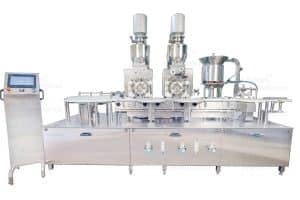

The Double Head Powder Filling and Rubber Stoppering Machine can accurately fill glass vials with injectables at high speed and subsequently secure rubber stoppering the vials. It is designed for sterile and high-throughput pharmaceutical manufacturing environments with a capacity of up to 240 vials/minute.
Powder Filling and Rubber Stoppering Machine Video
Built for Maximum Sterility and Durability
Fabricated from SS 316L contact parts, the Double Head Powder Filling and Rubber Stoppering Machine is made of stainless steel construction and built following GMP and FDA standards. The seamless design provides a reduced contamination risk and is compatible with cleanroom integration and easy sterilization, allowing compliance with aseptic manufacturing protocols.
How It Works?
-
Vial Infeed:
Sterilized vials are fed via the infeed turntable onto the main conveyor system.
-
Powder Filling:
Vials travel underneath a dual-head, eight-port twin powder wheel. It works on both principles and can be used in tray-based powder filling as well.
-
Rubber Stoppering:
Vials are sent to the automated vibratory rubber stoppering stage; a stopper is securely placed on each vial immediately after filling.
-
Vial Outfeed:
Filled and stoppered vials are automatically conveyed to the outfeed turntable for further processing.
Key Features of Powder Filling and Stoppering Machine
-
No Vial – No Fill System to prevent product loss.
-
Contact parts made from SS316, which are easily removable for sterilization.
-
SS304 frame construction ensures GMP compliance and durability.
-
Variable speed drive for precise powder feeding control.
-
Contamination-free powder hopper design.
-
Hopper can be completely dismantled for easy cleaning.
-
Minimal leftover powder at batch end, reducing waste.
-
Tool-free adjustments for doctor blade and wiper blade.
-
Quick changeover for powder hopper and agitator.
-
High filling accuracy of ±2%, depending on humidity and powder characteristics.
-
Built-in vibratory rubber stoppering system.
-
Multiple dosing capability through change parts.
-
Independent infeed and outfeed turntables with separate drives.
-
Safety clutch system to prevent vial breakage.
-
Suitable ground clearance for easy cleaning.
-
Elevated conveyor above top plate ensures hygienic operation.
-
Automatic vial feeding and discharge.
-
Stopper detection system – Machine halts if no stopper. (optional)
-
Low air and vacuum detection safety features. (optional)
-
Heavy-duty powder wheel mounting ensures trouble-free long-term use.
Technical Specification of Powder Filling Machine
|
Model |
AI-DPFM 8 |
| Diameter of Vial |
25-38mm |
|
Vial Height |
Up to 75mm |
| Diameter of Rubber Stopper |
20mm |
|
Range of Filling |
50mg-1.5g (for a single dose), and up to 6g (multiple dosing) |
| Filling Accuracy |
±1%, with controlled humidity below 28% RH |
|
Humidity Requirement |
Below 28% RH (to be maintained by customer) |
| Electrical Requirements |
415V AC (3-Phase) and 220V AC (Single Phase), 50 Hz, with A.C. drive |
|
Power Consumption |
4 H.P. |
| Compressed Air Requirement | Filtered, oil-free air at 4 kg/cm² |
| Vacuum Requirement |
28” Hg at 300 LPM (500 LPM recommended) |
|
Conveyor Height |
Adjustable between 815mm to 940mm |
* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.
Production Speed (Approximate)
-
Single Dose: Up to 120 or 240 vials/ minute
-
Double Dose: Up to 60 or 120 vials/ minute
-
Triple Dose: Up to 40 or 80 vials/ minute
-
Quadruple Dose: Up to 30 or 60 vials/minute
This Double Head Powder Filling and Rubber Stoppering Machine offers a compact, robust, and high-performance solution for injectable powder filling operations—ideal for sterile and high-volume pharmaceutical production lines seeking efficiency, consistency, and regulatory compliance.
