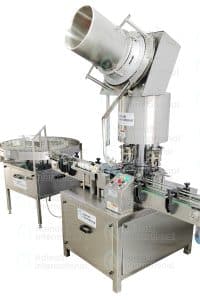

Automatic Four Head Bottle Screw Capping Machine

Description

The Automatic Four Head Bottle Screw Capping Machine is a high-speed, high-efficiency, high-quality, and durable Machine. Designed for PET bottles, glass, HDPE, and aluminium bottles, the machine finds application in pharmaceuticals, food & beverages, cosmetics, and chemicals. The machine is GMP-compliant and features stainless steel construction that offers a consistent, tamper-proof seal with a minimum of operator involvement.

The Automatic Four Head Bottle Screw Capping Machine is engineered for pharmaceutical, food, and cosmetic packaging lines that demand precision, hygiene, and consistent output. Built with SS 316 contact parts and a robust stainless steel frame, this capping machine delivers excellent corrosion resistance, long service life, and dependable performance in demanding production environments.



Designed in line with GMP and FDA standards, the machine features a seamless, smooth-surface construction that minimizes contamination risk and simplifies cleaning. Its sanitary design supports easy sterilization and integrates smoothly into cleanroom setups, helping manufacturers meet aseptic manufacturing requirements with confidence.



With four capping heads working together, this automatic screw capping machine increases throughput while maintaining uniform torque and secure sealing on every bottle. Whether you run small batches or high-volume production, it improves efficiency, reduces manual labor, and ensures reliable closure quality. Choose this four head bottle capping machine for a compliant, durable, and productivity-focused packaging solution.

Salient Features of Automatic Four Head Bottle Screw Capping Machine

Working Principle of Automatic Four Head Bottle Screw Capping Machine

Our automatic bottle capping machine streamlines the entire sealing process, delivering consistent, high-speed performance for packaging lines of every size. The process begins at the bottle infeed, where containers are smoothly guided onto the conveyor and precisely spaced by an infeed worm before entering the starwheel. This accurate spacing ensures stable handling and reduces the risk of jams or misaligned bottles.



Next comes cap orientation, where caps are fed into the machine and correctly aligned using either a bowl feeder or an elevator feeder. This flexibility allows manufacturers to choose the best option for their cap type, size, and production volume.



During the capping process, four capping heads descend simultaneously and apply accurate, repeatable torque to screw each cap securely onto its bottle. This multi-head design improves efficiency, prevents leakage, and maintains uniform seal quality across every batch.



Finally, at the bottle outfeed stage, the sealed bottles are transferred to the outfeed conveyor, ready for labeling, inspection, or packing. Ideal for pharmaceutical, food, beverage, and cosmetic industries, this reliable capping solution boosts productivity while ensuring a tight, professional finish.

Working Principle of Four Head Ampoule Filling Machine

Technical Specification of Automatic Four Head Bottle Screw Capping Machine

Specification Description
Model No ACSR-120
Number of Capping Heads Four
Production Rate Up to 80 bottles per minute
Bottle Diameter 24mm to 90mm
Bottle Height 50mm to 250mm
Cap Diameter 20mm, 25mm, 28mm (with appropriate change parts)
Power Requirement 1 H.P.
Electrical Supply 440 Volts, 3 Phase, 50 Hz, 4-Wire System
Conveyor Height Adjustable between 800mm to 900mm
Dimensions (L x W x H) 1675mm x 1000mm x 1800mm (approx.)

Advantages of Automatic Four Head Bottle Screw Capping Machine

Key Features of Automatic Four Head Bottle Screw Capping Machine

  • No Bottle – No Capping System.



  • Auto Stop on Bottle Misalignment or Overturning.



  • Quick changeover between different bottle and cap sizes.



  • SS304 construction with SS316 contact parts.



  • VFD-driven motor for speed control and consistent synchronization.



  • Safety clutch in starwheel to prevent damage from jamming or overloading.



  • Compatible with PET, glass, HDPE, and aluminum bottles.



  • Automatic operation with minimal manual handling.

FAQ for Automatic Four Head Bottle Screw Capping Machine

The machine (Model ACSR-120) can achieve a production rate of up to 80 bottles per minute, depending on bottle and cap sizes. Its four capping heads work in sequence to provide higher throughput while maintaining uniform torque and seal quality.

Bottles are fed onto a conveyor and precisely spaced by an infeed worm and starwheel. Caps are oriented and fed via a hopper, chute, bowl feeder, or elevator feeder. Four capping heads then descend simultaneously to apply controlled torque and screw the caps securely. Sealed bottles are transferred to the outfeed conveyor for further processing (labeling, inspection, or packing).

It accommodates bottles with diameters from 24 mm to 90 mm and heights from 50 mm to 250 mm. Compatible cap diameters are typically 20 mm, 25 mm, and 28 mm (with appropriate change parts). Quick-change parts and easy adjustments support versatile bottle and cap combinations.

Key features include a “No Bottle – No Cap” sensor system that prevents wastage and damage, auto-stop on bottle misalignment or overturning, adjustable torque control (clutch or magnetic) for consistent sealing without over-tightening or cap damage, PLC with touchscreen HMI for speed/parameter settings and recipe storage, VFD-driven motor for synchronized speed control, and a safety clutch in the starwheel to protect against jamming.

It offers high-speed automated operation that reduces labor dependency, consistent and leak-proof closures across batches, minimal cap wastage, no damage from cross-threading or over-tightening, quick changeover between sizes, durable stainless steel construction (SS 304 frame with SS 316 contact parts), easy integration into filling/labeling lines, and compliance with GMP standards for hygienic, cleanroom-friendly performance.

Yes — Adinath International Automatic Four Head Bottle Screw Capping Machine complies to cGMP, MHRA, FDA and WHO-GMP standards, with optional CE marked equipments and 21 CFR Part 11 software compliance for the HMI/PLC. Machine contact parts having Stainless Steel 316L grade materials with validation documents having IQ, OQ, DQ validation protocols as optional. Organization is ISO 9001:2015 certified.

Manufacturing lead time is generally 7 to 14 weeks from order confirmation. Further it takes 2 to 8 weeks for international shipping depending upon destination. Order can be expediate sooner or later as per specific buying requirements. Destination specific certifications like US FDA, EU, ANVISA, SFDA. CE can add 3 to 6 weeks additionally.

Yes, Adinath International Automatic Four Head Bottle Screw Capping Machine export this machine to more than 48 countries of this world including America, Europe, Asia, Middle East, Africa, CIS and Australia sub continents. Please visit our clientele page for complete list of our customers worldwide. See the turnkey project page for our complete plant offerings.

Service of skilled engineers and technicians provided for technical support of supplied equipments. Installations, commissioning, training and IQ, OQ, DQ validations performed by qualified engineers. Remote support through video call, phone, email and other modes provided for international installations. Spare parts of Automatic Four Head Bottle Screw Capping Machine stocked at our premises in Ahmedabad and shipped immediately after ordering. Standard 12 months manufacturing warranty included with supplied equipment.
