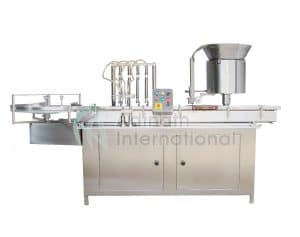

Injectable Liquid Filling and Rubber Stoppering Machine

Description

The Injectable Liquid Filling and Rubber Stoppering Machine is a top machine that fills an injectable liquid in the vial and then seals it using a rubber stopper, which provides added safety. This is an efficient, productive, and compliant with Good Manufacturing Practices (GMP) ready machine specifically designed for pharmaceutical manufacturing.

This machine is built from robust SS 304 stainless steel, delivering exceptional durability and long-lasting corrosion resistance even in demanding industrial and laboratory environments. All parts that come into direct contact with liquid are made from premium SS 316 stainless steel, a grade known for its superior resistance to chemicals, moisture, and harsh cleaning agents. These contact parts are designed for easy removal, making autoclaving, sterilization, and routine cleaning quick, simple, and highly effective.



Designed with hygiene as a top priority, this stainless steel machine follows strict cleanliness and safety standards required in pharmaceutical, food, cosmetic, and chemical processing industries. The smooth, non-reactive surfaces prevent product contamination, reduce the risk of residue buildup, and help maintain consistent product quality in every batch. By preserving the purity and integrity of your product, the machine supports regulatory compliance and reliable performance.



Whether you need a dependable solution for daily production or precision laboratory work, this corrosion-resistant, easy-to-clean machine offers outstanding value, low maintenance, and a longer service life. Choose SS 304 and SS 316 construction for dependable, hygienic, and efficient operation.

Salient Features of Injectable Liquid Filling and Rubber Stoppering Machine

Working Principle of Injectable Liquid Filling and Rubber Stoppering Machine

A vial liquid filling and stoppering machine streamlines pharmaceutical production by combining precision, speed, and sterility in one automated process. The process begins at the infeed station, where inbuilt turntables automatically feed vials into the machine. These turntables align and position each vial accurately, ensuring consistent, reliable filling and minimizing handling errors.



Once positioned, vials move to the liquid filling stage. Advanced diving nozzles fill each container with high accuracy, typically within ±1%, depending on the fill volume and liquid type. This foam-free filling method reduces product wastage, protects sensitive formulations, and maintains dosage consistency across every batch.



After filling, the machine’s advanced stoppering system places rubber stoppers precisely on each vial. This creates a secure, sterile seal that protects the product from contamination and supports strict pharmaceutical quality standards.



Finally, sealed vials transfer smoothly to the outfeed turntable, ready for the next production phase, such as capping or inspection. This seamless flow improves efficiency, reduces downtime, and helps manufacturers achieve high output with dependable quality.

Working Principle of Four Head Ampoule Filling Machine

Technical Specification of Injectable Liquid Filling and Rubber Stoppering Machine

Model ALVF 4​
Filling Heads 4​
Vial Diameter 15mm to 50mm​
Vial Height Up to 75mm
Dry or Wet Grey Butyl Rubber Stopper Size 13mm and 20mm
Volume Range 1ml 50ml ( With change parts )​
Filling Precision ±1% (actual precision depends on fill volume and liquid type)
Power needs Single-phase power supply, 220 VAC, 50 Hz
Consumption of Power 3.0 H.P.​
Production Speed 40 vials/min​ max
Fill Range of Syringe 0.1ml-1ml, 1ml-5ml, 2ml-10ml, 10ml-50ml​.
Height of Conveyor 800-850mm
Overall Dimensions (L x W x H) 3000 x 850 x 1400 mm

Advantages of Injectable Liquid Filling and Rubber Stoppering Machine

Key Features of Injectable Liquid Filling and Rubber Stoppering Machine

  • No Vial – No Fill System: It will fill only when it detects a vial, ensuring that waste of the product is not there.



  • No Vial – Machine Stop Mechanism: This ensures the additional safety feature by stopping the machine if any vials are not being sensed.



  • No Stopper – No Stop Machine: The machine will be stopped if no stopper is detected.



  • Diving Nozzle Mechanism: Non-foaming filling of various liquids.



  • Maximum Precision: Depending on fill volume and liquid properties, accuracy is ± 1%



  • Automated Infeed and Vial Outfeed: This minimizes manual intervention.



  • Zero Changeover Time: Change vial sizes and fill volumes anywhere between 10ml and 100ml



Incorporating into your production line, this Injectable Liquid Filling and Rubber Stoppering Machine saves time, minimizes human error, and ensures adherence to pharmaceutical manufacturing regulations. Being a highly capable and durable asset, this machine lets you achieve premium quality injectable liquid packaging efficiently.

FAQ for Injectable Liquid Filling and Rubber Stoppering Machine

The machine body is built from robust SS 304 stainless steel for durability and corrosion resistance. All product-contact parts are made from premium SS 316 stainless steel, which offers superior resistance to chemicals and cleaning agents. These contact parts are designed for easy removal to enable autoclaving, sterilization, and routine cleaning.

The standard model (ALVF 4) offers a maximum production speed of 40 vials per minute with 4 filling heads. It handles vial diameters from 15 mm to 50 mm and heights up to 75 mm, with a fill volume range of 1 ml to 50 ml (using change parts) and filling precision of ±1% (depending on volume and liquid type).

It features a sterile fluid path, aseptic-friendly design (compatible with laminar airflow, RABS, or isolators), and optional nitrogen flushing for oxygen-sensitive products. Safety systems include “No Vial – No Fill,” “No Vial – Machine Stop,” and “No Stopper – Machine Stop” sensors that halt filling or stoppering when a vial or stopper is missing, preventing wastage and spillage.

Advantages include precise dosing via piston, peristaltic, or time-pressure pumps; high-speed continuous operation; reduced contamination risk through immediate stoppering after filling; lower labor needs due to full automation; minimized product loss; longer shelf life with optional nitrogen purging; and strong support for GMP and sterile manufacturing standards.

Vials are automatically fed via infeed turntables and aligned. Diving nozzles then fill them accurately (typically within ±1%) with a foam-free method. An automatic stoppering system (using vibratory bowl and chute) places rubber stoppers (13 mm or 20 mm) precisely on each vial. Finally, the sealed vials move to the outfeed turntable for the next process, such as capping or inspection.

Yes — Adinath International Injectable Liquid Filling and Rubber Stoppering Machine complies to cGMP, MHRA, FDA and WHO-GMP standards, with optional CE marked equipments and 21 CFR Part 11 software compliance for the HMI/PLC. Machine contact parts having Stainless Steel 316L grade materials with validation documents having IQ, OQ, DQ validation protocols as optional. Organization is ISO 9001:2015 certified.

Manufacturing lead time is generally 7 to 14 weeks from order confirmation. Further it takes 2 to 8 weeks for international shipping depending upon destination. Order can be expediate sooner or later as per specific buying requirements. Destination specific certifications like US FDA, EU, ANVISA, SFDA. CE can add 3 to 6 weeks additionally.

Yes, Adinath International Injectable Liquid Filling and Rubber Stoppering Machine export this machine to more than 48 countries of this world including America, Europe, Asia, Middle East, Africa, CIS and Australia sub continents. Please visit our clientele page for complete list of our customers worldwide. See the turnkey project page for our complete plant offerings.

Service of skilled engineers and technicians provided for technical support of supplied equipments. Installations, commissioning, training and IQ, OQ, DQ validations performed by qualified engineers. Remote support through video call, phone, email and other modes provided for international installations. Spare parts of Injectable Liquid Filling and Rubber Stoppering Machine stocked at our premises in Ahmedabad and shipped immediately after ordering. Standard 12 months manufacturing warranty included with supplied equipment.
