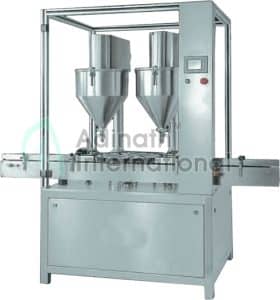

The GMP-based Double Head Auger Powder Filling Machine is ideal for high-speed filling and accurate dosing of dry syrups, powdered formulations, and granular products into bottles. Its dual-head platform delivers greater throughput with continuous accuracy for pharmaceutical, food, and chemical production lines.
The Double Head Auger Powder Filling Machine is engineered with SS 316L contact parts and a robust stainless steel frame, ensuring durability, corrosion resistance, and reliable performance in demanding production environments. Built in accordance with GMP and FDA standards, this powder filling machine meets the strict hygiene and quality requirements of pharmaceutical, food, chemical, and nutraceutical industries.
Its seamless, crevice-free design significantly reduces the risk of product contamination and powder buildup, making cleaning and sterilization fast and effective. This smooth construction supports easy sanitation between batches, helping manufacturers maintain consistent product purity and minimize downtime.
The machine is also fully compatible with cleanroom integration, making it an ideal choice for facilities that follow aseptic manufacturing protocols. The dual-head auger filling system delivers accurate dosing, higher output, and consistent fill weights, improving overall productivity and reducing product wastage.
Whether you are filling fine powders, granules, or free-flowing materials, this stainless steel auger filler offers dependable accuracy, regulatory compliance, and long-term value. Choose this advanced powder filling solution to enhance efficiency, safeguard product quality, and meet global manufacturing standards with confidence.
The empty bottles are automatically fed onto the SS slat conveyor through the infeed turntable integrated into the machine.
The spacing of bottles is aligned with the auger heads.
Two augers deliver the exact amount of powder chosen by the user into each bottle for perfect precision.
Sensors ensure that the filling only happens when a bottle is present to prevent loss of product.
Bottles from fillers are moved seamlessly through the next packaging process (sealing, capping, labeling, etc.).
| Model | AI-APF 2 |
| Filling Mechanism | Twin-head auger-based dosing |
| Contact Material | SS316 (product contact parts), SS304 frame |
| Accuracy | ±2 to 3% (depending on powder type and humidity) |
| Required Ambient Humidity | Below 30% RH |
| Power Supply | 415 VAC 3-Phase and 220VAC Single Phase, 50 Hz with A.C. drive |
| Power Consumption | 4 H.P. |
| Conveyor Height | Adjustable from 815mm to 940mm |
| Filling Range | 5gms to 60gms per dose |
| Number of Filling Heads | Two |
| Container Diameter | 25mm to 85mm |
| Container Height | Up to 100mm |
| Output Capacity | Up to 50 bottles per minute |
| Overall Dimensions | 3800mm (L) x 1500mm (W) x 1900mm (H) approx. |
No Bottle–No Fill: This helps eliminate product wastage by ensuring that the filling process is only activated when a container is in place.
Hygienic Contact Parts: All parts in contact with the product are made from SS316, Nylon, and HDPE for long life and GMP compliance.
Durable Construction: Constructed of SS304 structure for high durability and corrosion resistance.
Variable Frequency Drive: Provides adaptability in speed according to specific production needs.
Integrated Infeed Turntable – A turntable (optional) mounted on the infeed side that is powered independently for precise feeding.
Air Pressure Monitoring: If the air pressure falls below the set limit, the system automatically stops. (optional)
Heavy Duty Filling Head Mounting: Helps to maintain stability at high speed, ensuring longevity.
It is a GMP-based dual-head machine designed for high-speed, accurate dosing of dry syrups, powdered formulations, and granular products into bottles. It handles fine, free-flowing, sticky, and hygroscopic powders and is ideal for pharmaceutical, food, chemical, and nutraceutical production lines. Its SS 316L contact parts and stainless-steel construction support cleanroom and aseptic environments.
The machine delivers up to 50 bottles per minute using its twin-head auger system. The filling range is 5 g to 60 g per dose (adjustable by changing the auger size). Container diameter compatibility is 25–85 mm and height up to 100 mm.
Accuracy is typically ±2 to 3% (depending on powder type and humidity). Servo-driven auger dosing provides precise powder weights with minimal variation. An agitator in the hopper maintains even powder flow and prevents bridging, while the “No Bottle – No Fill” sensor system avoids product wastage.
Product-contact parts are SS 316 (or SS 316L), with an SS 304 frame. The design is crevice-free for easy cleaning and reduced contamination risk. It is built to GMP and FDA standards, suitable for hygienic pharmaceutical, food, and chemical applications, and is cleanroom-compatible.
Empty bottles are fed via an integrated infeed turntable onto an SS slat conveyor, precisely positioned under the two auger heads, filled simultaneously, and discharged for downstream processes (sealing, capping, etc.). It is fully automatic, features a PLC control system with touchscreen HMI (including recipe storage), Variable Frequency Drive for speed control, optional dust extraction, and optional air-pressure monitoring.
Key advantages include doubled output versus single-head machines, reduced labor and product loss, dust-free filling, versatile container handling (bottles, jars, pouches with quick-change parts), and cost-effective automation for small-to-medium production. Power requirement is 4 HP (415 VAC 3-phase / 220 VAC single-phase, 50 Hz), conveyor height is adjustable from 815–940 mm, overall dimensions are approximately 3800 mm (L) × 1500 mm (W) × 1900 mm (H), and ambient humidity should be kept below 30% RH for best performance.
Yes — Adinath International Double Head Auger Powder Filling Machine complies to cGMP, MHRA, FDA and WHO-GMP standards, with optional CE marked equipments and 21 CFR Part 11 software compliance for the HMI/PLC. Machine contact parts having Stainless Steel 316L grade materials with validation documents having IQ, OQ, DQ validation protocols as optional. Organization is ISO 9001:2015 certified.
Manufacturing lead time is generally 7 to 14 weeks from order confirmation. Further it takes 2 to 8 weeks for international shipping depending upon destination. Order can be expediate sooner or later as per specific buying requirements. Destination specific certifications like US FDA, EU, ANVISA, SFDA. CE can add 3 to 6 weeks additionally.
Yes, Adinath International Double Head Auger Powder Filling Machine export this machine to more than 48 countries of this world including America, Europe, Asia, Middle East, Africa, CIS and Australia sub continents. Please visit our clientele page for complete list of our customers worldwide. See the turnkey project page for our complete plant offerings.
Service of skilled engineers and technicians provided for technical support of supplied equipments. Installations, commissioning, training and IQ, OQ, DQ validations performed by qualified engineers. Remote support through video call, phone, email and other modes provided for international installations. Spare parts of Double Head Auger Powder Filling Machine stocked at our premises in Ahmedabad and shipped immediately after ordering. Standard 12 months manufacturing warranty included with supplied equipment.
