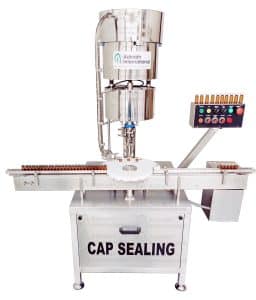

Automatic Single Head Vial Cap Sealing Machine

Description

The Automatic Single Head Vial Cap Sealing Machine is designed to accurately and efficiently seal glass vials with air-tight and tamper-proof closures that are crucial for pharmaceutical, veterinary, and biotech industries. Made of heavy-duty stainless steel Compact Construction and strict to Good Manufacturing Practices (GMP) Standards.

The Automatic Single Head Vial Cap Sealing Machine is a smart, energy-efficient solution for pharmaceutical manufacturers looking to reduce operating costs while supporting sustainable production. Designed to consume very little power, this vial capping machine delivers consistent uptime and dependable performance, making it an ideal choice for any facility that values both productivity and environmental responsibility.



Its compact mechanical structure saves valuable floor space, while precisely calibrated motors and actuators ensure that energy is used only where it is needed. This intelligent design maintains high sealing speed and superior seal integrity without unnecessary power consumption. As a result, every vial is sealed securely, protecting product quality, sterility, and shelf life.



For pharmaceutical plants, biotech companies, and laboratories, this single head vial sealing machine offers lower electricity bills, reduced maintenance needs, and a smaller carbon footprint. Its reliable, low-energy operation supports modern green manufacturing goals while meeting strict industry standards. Investing in this automatic vial cap sealing machine means choosing efficient, cost-effective, and eco-friendly technology that helps your production line run smoothly, day after day.

Salient Features of Automatic Single Head Vial Cap Sealing Machine

Working Principle of Automatic Single Head Vial Cap Sealing Machine

  • Vial Infeed: Stoppered vials are loaded onto the machine’s conveyor from the upstream filling station.



  • Vial Spacing and Transfer: An infeed worm spaces the vials accurately and guides vials to an infeed starwheel.



  • Cap Placement: Aluminum caps are oriented by a vibratory bowl feeder and fed into a chute, where they are dropped onto the vial as it advances.



  • Sealing Process: Vials are placed upon a spring-loaded platform that utilizes rollers that exert constant, even pressure to crimp the aluminum cap tightly.



  • Vial Discharge: Sealed vials are pushed off by an exit starwheel and onto the outfeed conveyor for further processing.



Working Principle of Four Head Ampoule Filling Machine

Technical Specification of Automatic Single Head Vial Cap Sealing Machine

ModelACS-60
Number of Sealing HeadsSingle
Production RateUp to 50 vials per minute
Container Diameter15mm to 80mm
Container Height20mm to 180mm
Cap Diameter13mm, 20mm, 28mm, 30mm, and 33mm (with change parts)
Power Supply0.5 H.P.
Electrical Requirements440 Volts, 3 Phase, 50 Hz, 4-Wire System
Overall Dimensions (L x W x H)1300mm x 800mm x 1800mm (approx.)

Advantages of Automatic Single Head Vial Cap Sealing Machine

Key Features of Automatic Single Head Vial Cap Sealing Machine

  • No Vial – No Cap System: This ensures that caps are only placed when vials are present, preventing wastage and misoperation.



  • No Cap – Machine Stop System: Halts the machine if caps are absent, enhancing safety and operational efficiency.​



  • Stainless Steel Construction: This offers corrosion resistance and maintains high hygiene standards.



  • Variable Speed Cap Feeder: Allows precise control over cap feeding rates to match production needs.​



  • Easy-to-Clean Hopper: Designed for complete disassembly, facilitating thorough cleaning and maintenance.​



  • Safety Clutch System: Protects against vial breakage by disengaging the mechanism in case of obstructions.



  • Single Drive Synchronization: Coordinates the conveyor and star wheel operations for seamless performance.​



  • Quick Changeover: Minimizes downtime with rapid adjustments for different vial and cap sizes.​



Optional Accessories:



  • Aluminum profile cabinet for full-body enclosure



  • Special chuck for flip-off seals



  • PLC with HMI for advanced control and monitoring



The Automatic Single Head Vial Cap Sealing Machine is an ideal solution for secure, high-integrity vial sealing operations in sterile environments. Its accuracy, reliability, and compliance with GMP standards make it a valuable addition to any pharmaceutical production line.

FAQ for Automatic Single Head Vial Cap Sealing Machine

It handles container diameters from 15 mm to 80 mm and heights from 20 mm to 180 mm. Compatible aluminum cap diameters include 13 mm, 20 mm, 28 mm, 30 mm, and 33 mm (change parts required for different sizes). Quick changeover allows versatile use across formats.

Stoppered vials enter via conveyor and are spaced by an infeed worm and starwheel. Aluminum caps are oriented by a vibratory bowl feeder and placed on the vials. A spring-loaded platform with rollers then applies even pressure to crimp the caps securely. Sealed vials exit via a starwheel onto the outfeed conveyor.

Key features include “No Stopper on Vial – Machine Stop,” “No Seal in Chute – Machine Stop,” a safety clutch to prevent vial breakage from odd diameters, spring-loaded free-spinning sealing assembly for neck-diameter variations, differential sealing-pressure adjustment, and an optional photo-sensing device. Contact parts are stainless steel or food-grade materials, and the machine complies with cGMP standards.

It requires 0.5 H.P. power with electrical supply of 440 Volts, 3 Phase, 50 Hz (4-wire system; voltage can be adjusted per customer needs). Approximate overall dimensions are 1300 mm (L) × 800 mm (W) × 1800 mm (H). The compact design saves floor space.

Optional features include a safety cabinet with doors, PLC system with HMI, laminar air flow unit for sterile Class 100 environments, aluminum profile full-body enclosure, and special chuck for flip-off seals. IQ/OQ/DQ documentation can be provided on demand.

Yes — Adinath International Automatic Single Head Vial Cap Sealing Machine complies to cGMP, MHRA, FDA and WHO-GMP standards, with optional CE marked equipments and 21 CFR Part 11 software compliance for the HMI/PLC. Machine contact parts having Stainless Steel 316L grade materials with validation documents having IQ, OQ, DQ validation protocols as optional. Organization is ISO 9001:2015 certified.

Manufacturing lead time is generally 7 to 14 weeks from order confirmation. Further it takes 2 to 8 weeks for international shipping depending upon destination. Order can be expediate sooner or later as per specific buying requirements. Destination specific certifications like US FDA, EU, ANVISA, SFDA. CE can add 3 to 6 weeks additionally.

Yes, Adinath International Automatic Single Head Vial Cap Sealing Machine export this machine to more than 48 countries of this world including America, Europe, Asia, Middle East, Africa, CIS and Australia sub continents. Please visit our clientele page for complete list of our customers worldwide. See the turnkey project page for our complete plant offerings.

Service of skilled engineers and technicians provided for technical support of supplied equipments. Installations, commissioning, training and IQ, OQ, DQ validations performed by qualified engineers. Remote support through video call, phone, email and other modes provided for international installations. Spare parts of Automatic Single Head Vial Cap Sealing Machine stocked at our premises in Ahmedabad and shipped immediately after ordering. Standard 12 months manufacturing warranty included with supplied equipment.
