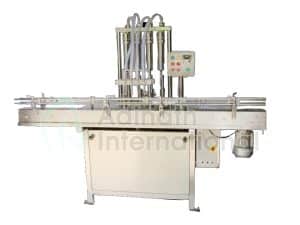

Designed for speed and precision, the Automatic Four Head Volumetric Liquid Filling Machine plays a vital role in meeting the filling requirements of a wide range of markets, such as pharmaceuticals, chemicals, food and beverages, and cosmetics. It is best suited for filling a variety of free-flowing liquids with the highest accuracy and consistency and is, therefore, a preferred solution for mid- to large-scale production setups.
The Automatic Four Head Volumetric Liquid Filling Machine is engineered for manufacturers who need accurate, hygienic, and high-speed liquid packaging. Its main body is built from durable SS304 stainless steel, while every product-contact part is crafted from premium SS316, ensuring excellent corrosion resistance, long service life, and compliance with strict hygiene standards. This robust construction makes the machine a dependable choice for pharmaceutical, food, beverage, cosmetic, and chemical industries.
Equipped with an advanced volumetric filling system, this four head liquid filling machine delivers consistent fill volumes with minimal product wastage. The precision dosing mechanism supports a wide range of liquids, from thin and free-flowing to semi-viscous products, helping businesses maintain uniform quality across every bottle.
Versatility is another key strength. The machine can be quickly adjusted to handle different bottle shapes, sizes, and fill capacities, with minimal changeover time. This flexibility reduces downtime, boosts productivity, and lowers operating costs, making it ideal for both growing businesses and large-scale production lines.
Bottle Feeding:
An infeed turntable automatically feeds bottles onto the conveyor. The bottles are perfectly aligned with the filling heads using a twin pneumatic stopper specially designed for this purpose.
Volumetric Filling Mechanism:
This Automatic Four Head Volumetric Liquid Filling Machine consists of 4 stainless steel volumetric syringes and can provide exact filling volumes consistently. The size of each syringe is individually adjustable depending on the actual size of the container.
Foam-Free Filling:
The nozzle system goes inside the bottle, removing foaming or splashing, especially in the case of viscous or foamy liquids.
Post-Filling Transfer:
From filling, bottles are carefully transferred through a synchronous conveyor system to downstream capping or labeling stations.
| Model | AI-VLFM 4 |
| Number of Filling Heads | Four |
| Output of Production | Up to 40 bottles per minute (depending on product and bottle type) |
| Filling Range | 30ml to 500ml |
| Filling Accuracy | ±1% |
| Bottle Diameter Range | 30mm to 100mm |
| Power | 2.0 H.P. |
| Power Supply | 440 V, Three Phase, 50Hz, 4 wires |
| Range of Syringe Filling | 10-50ml, 50-100ml, 100-250ml, and 250-500ml |
| Height of Conveyor | 800mm to 850mm (adjustable) |
Multihead – Four heads for improved productivity and appropriate bottle flow rate.
No Fill System – Zero product loss due to no bottle.
SS316 construction – All contact parts are made of SS316 for hygienic operation and easy sterilization.
SS304 Machine Frame – Provides aesthetic appeal and rust resistance.
Nozzle System – Foam-free filling ensures clean fills.
Nozzles with Drip-Free Shut-Off – Avoid product drippage.
Variable A.C. – Speed control with smooth performance.
Minimal Moving Parts – Easy to clean and maintain.
Conveyor Height – Adjustable to integrate with various downstream packaging lines.
Compact Design – Space-saving without compromising performance.
It is designed for accurate, high-speed filling of free-flowing to semi-viscous liquids in pharmaceuticals, chemicals, food & beverages, and cosmetics. It suits mid- to large-scale production with consistent volumes and hygienic operation.
The machine (Model AI-VLFM 4) delivers up to 40 bottles per minute (depending on product and bottle type). Filling range is 30 ml to 500 ml, with syringe options covering 10–50 ml, 50–100 ml, 100–250 ml, and 250–500 ml. Filling accuracy is ±1%.
Bottles are fed automatically via an infeed turntable and aligned by twin pneumatic stoppers on a conveyor. Four stainless-steel volumetric syringes (individually adjustable) dispense exact volumes. Nozzles enter the bottles for foam-free filling, after which bottles move via conveyor to downstream stations such as capping or labeling.
The main body is SS304 stainless steel for durability and corrosion resistance. All product-contact parts are SS316 for superior hygiene, easy sterilization, and compliance with strict industry standards in pharma, food, and related sectors.
It includes “no container, no fill” sensors to prevent wastage, anti-drip nozzles with suck-back action for clean necks and minimal product loss, PLC control with touchscreen HMI for easy volume/speed settings and recipe storage, and a fully automatic process that reduces manual handling and contamination risk.
It accommodates bottles/vials with diameters of 30–100 mm and fill volumes from 30–500 ml. It works with thin free-flowing liquids, syrups, oils, and moderately viscous products. Quick-change parts and simple adjustments enable fast changeovers between different sizes and shapes, minimizing downtime.
Yes — Adinath International Automatic Four Head Volumetric Liquid Filling Machine complies to cGMP, MHRA, FDA and WHO-GMP standards, with optional CE marked equipments and 21 CFR Part 11 software compliance for the HMI/PLC. Machine contact parts having Stainless Steel 316L grade materials with validation documents having IQ, OQ, DQ validation protocols as optional. Organization is ISO 9001:2015 certified.
Manufacturing lead time is generally 7 to 14 weeks from order confirmation. Further it takes 2 to 8 weeks for international shipping depending upon destination. Order can be expediate sooner or later as per specific buying requirements. Destination specific certifications like US FDA, EU, ANVISA, SFDA. CE can add 3 to 6 weeks additionally.
Yes, Adinath International Automatic Four Head Volumetric Liquid Filling Machine export this machine to more than 48 countries of this world including America, Europe, Asia, Middle East, Africa, CIS and Australia sub continents. Please visit our clientele page for complete list of our customers worldwide. See the turnkey project page for our complete plant offerings.
Service of skilled engineers and technicians provided for technical support of supplied equipments. Installations, commissioning, training and IQ, OQ, DQ validations performed by qualified engineers. Remote support through video call, phone, email and other modes provided for international installations. Spare parts of Automatic Four Head Volumetric Liquid Filling Machine stocked at our premises in Ahmedabad and shipped immediately after ordering. Standard 12 months manufacturing warranty included with supplied equipment.
