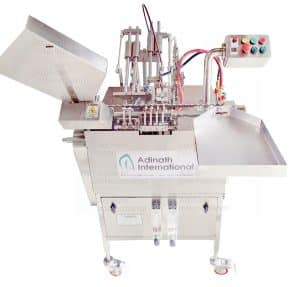

The Onion Skin Ampoule Filling Machine is designed and manufactured specifically for filling and sealing onion skin or crushable glass ampoules used in the pharma, biotech, cosmetic, veterinary, and chemical industries. The design makes it accurate, sterile, and cGMP compliant, suitable for different applications in the liquid filling industry.
The Onion Skin Ampoule Filling Machine is built for pharmaceutical manufacturers who need reliable, hygienic, and compliant liquid filling. All product contact parts are fabricated from SS 316L stainless steel, which offers excellent corrosion resistance, durability, and compatibility with a wide range of injectable formulations. The complete machine frame is also made of stainless steel and engineered in line with GMP and FDA standards, helping manufacturers meet strict regulatory expectations with confidence.
Its seamless, crevice-free design minimizes the risk of particle accumulation and cross-contamination, making routine cleaning faster and more effective. The smooth surfaces and sanitary construction support easy sterilization and validation, which is essential for maintaining product purity and batch consistency. This ampoule filling machine is also suitable for cleanroom integration, allowing seamless installation within controlled environments and supporting aseptic manufacturing protocols.
Whether you operate a small-scale pharmaceutical facility or a high-volume production line, this onion skin ampoule filling machine delivers accurate dosing, stable performance, and long service life. Choose a dependable filling solution that protects product quality, improves operational efficiency, and ensures compliance across every stage of sterile ampoule production.
The automated ampoule filling and sealing machine streamlines pharmaceutical packaging through a precise, multi-stage process that ensures product safety and consistency. First, sterilized ampoules are loaded into a slant hopper and guided one by one through a synchronized star wheel onto a moving eccentric rack, enabling smooth, continuous infeed. Before filling, a pre-gassing step uses nitrogen to remove oxygen from each ampoule, protecting sensitive formulations from oxidation. The machine then fills every ampoule with an accurate dose of liquid, delivering reliable volume control and minimal wastage.
After filling, a second nitrogen gassing step is performed to maintain sterility and extend product shelf life. The ampoule necks are then pre-heated using an LPG-oxygen flame, preparing the glass for a secure seal. During sealing, the ampoules are rotated while exposed to the flame, creating a hermetic, leak-proof closure that safeguards the contents from contamination. Finally, the filled and sealed ampoules are automatically discharged onto a collection tray, ready for inspection or labeling. This fully automated workflow improves production efficiency, supports GMP compliance, and delivers high-quality ampoule packaging for injectable pharmaceutical products.
| Model | OFS-1 | OFS-2 | OFS-4 | OFS-8 |
| Filling Heads | Single | Two | Four | Eight |
| Ampoule Size Range | 1ml to 30ml | 1ml to 30ml | 1ml to 10ml | 1ml to 20ml |
| Filling Speed | Up to 25 ampoules per minute | Up to 50 ampoules per minute | Up to 100 ampoules per minute | Up to 200 ampoules per minute |
| Power Requirement | 0.5 H.P. | 1.0 H.P. | 1.0 H.P. | 2.0 H.P. |
| Machine Dimensions | 915mm (L) x 610mm (W) x 965mm (H) approx. | 915mm (L) x 760mm (W) x 965mm (H) approx. | 1200mm (L) x 1070mm (W) x 965mm (H) approx. | 2200mm (L) x 1400mm (W) x 1100mm (H) approx. |
Compact GMP Design: The Design adheres to Current Good Manufacturing Practices (cGMP), ensuring that the product is manufactured in a way that assures quality and safety. All the contact parts are made from High-Quality SS316L, & Non-contact parts are made from SS304.
Multi-size ampoule sealing: Accept 1-20 ml (up to 30 ml ampule capping with add-on).
Precise Filling Capability: Provides the ability to fill with an accuracy of ±1%, enabling consistent dosing.
Gas Nitrogen Flushing Capability: Nitrogen or argon gas flushing before and after filling to protect the product.
Pre-Warming Station: Designed with a pre-warming feature that prepares the ampoules before sealing, providing a secure seal.
Rapid Ampoule Swap: Engineered for rapid, tool-less swapping of various ampoule dimensions, bolstering productivity.
Rotary Ampoule Neck Construction Mechanism: This mechanism, through the ampoule neck rotary during the antique chase, is the state complete heating and sealing uniform.
Dead Tray Provision: Ensures upright positioning of ampoules during collection, making it easier to handle after sealing.
Special Burners: Offer burners that accommodate double glass with film thicknesses of 0.3mm–0.8mm for proper sealing.
This Onion Skin Ampoule Filling Machine‘s robust design and versatile features make it a reliable solution for efficient ampoule filling and sealing operations across various industries.
The machine is specifically designed and manufactured for filling and sealing onion skin (crushable) glass ampoules as well as open-mouth glass ampoules. It handles ampoule sizes typically ranging from 1 ml to 30 ml (model-dependent) and is suitable for pharmaceutical, biotech, cosmetic, veterinary, and chemical applications.
It uses a piston pump filling mechanism that delivers a filling accuracy of ±1%. This ensures precise, consistent dosing with minimal product wastage, which is critical for injectable and high-value liquid formulations.
Sealing is performed by flame sealing using LPG and oxygen. Ampoule necks are first pre-heated, then rotated while exposed to the flame to create a hermetic, leak-proof seal. Special burners accommodate glass thicknesses of approximately 0.3–0.8 mm for reliable sealing of onion-skin style ampoules.
Yes. Nitrogen flushing is available both before and after filling. Pre-gassing removes oxygen to protect sensitive formulations from oxidation, while post-filling nitrogen helps maintain sterility and extend product shelf life.
Four main models are offered:
Ampoule size ranges and power requirements vary by model.
All product-contact parts are fabricated from Stainless Steel 316L for excellent corrosion resistance and hygiene. The frame is Stainless Steel 304 and engineered to cGMP (and FDA-aligned) standards. The crevice-free, sanitary design supports easy cleaning, sterilization, validation, and cleanroom integration.
Yes — Adinath International Onion Skin Ampoule Filling Machine complies to cGMP, MHRA, FDA and WHO-GMP standards, with optional CE marked equipments and 21 CFR Part 11 software compliance for the HMI/PLC. Machine contact parts having Stainless Steel 316L grade materials with validation documents having IQ, OQ, DQ validation protocols as optional. Organization is ISO 9001:2015 certified.
Manufacturing lead time is generally 7 to 14 weeks from order confirmation. Further it takes 2 to 8 weeks for international shipping depending upon destination. Order can be expediate sooner or later as per specific buying requirements. Destination specific certifications like US FDA, EU, ANVISA, SFDA. CE can add 3 to 6 weeks additionally.
Yes, Adinath International Onion Skin Ampoule Filling Machine export this machine to more than 48 countries of this world including America, Europe, Asia, Middle East, Africa, CIS and Australia sub continents. Please visit our clientele page for complete list of our customers worldwide. See the turnkey project page for our complete plant offerings.
Service of skilled engineers and technicians provided for technical support of supplied equipments. Installations, commissioning, training and IQ, OQ, DQ validations performed by qualified engineers. Remote support through video call, phone, email and other modes provided for international installations. Spare parts of Onion Skin Ampoule Filling Machine stocked at our premises in Ahmedabad and shipped immediately after ordering. Standard 12 months manufacturing warranty included with supplied equipment.
