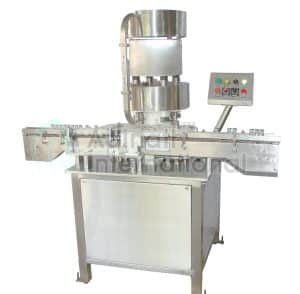

Automatic Four Head Vial Capping Machine

Description

The Automatic Four Head Vial Capping Machine is designed to cap glass vials in a short period of time with accuracy using plain aluminium or flip-off caps. This machine is perfect for pharmaceutical and other industries that need an efficient, reliable capping machine, handling up to 120 vials/min. Made of sturdy stainless steel to provide a long service life and ensure adherence to Good Manufacturing Practices (GMP).

The Automatic Four Head Vial Capping Machine is engineered for pharmaceutical and biotech manufacturers who need reliable, high-speed sealing without compromising hygiene. All product contact parts are fabricated from SS 316 stainless steel, offering excellent corrosion resistance, durability, and compatibility with aggressive cleaning agents. The entire machine is built in line with GMP and FDA standards, ensuring consistent quality and regulatory compliance across every production batch.



Its seamless, smooth-surface design minimizes crevices where particles or microbes can accumulate, significantly reducing contamination risk. This makes the vial capping machine well suited for cleanroom integration and aseptic filling lines, where strict cleanliness protocols must be followed. Cleaning and sterilization are quick and straightforward, helping reduce downtime between batches and supporting efficient validation and audit readiness.



With four capping heads working in sync, the machine delivers higher output and uniform sealing for vials of various sizes. Whether you manage injectable, ophthalmic, or liquid formulations, this stainless steel capping solution improves productivity, protects product integrity, and supports compliant aseptic manufacturing. Choose a dependable pharmaceutical packaging machine that balances performance, safety, and long-term value for your facility.

Salient Features of Automatic Four Head Vial Capping Machine

Working Principle of Automatic Four Head Vial Capping Machine

The automatic vial capping process begins at the vial infeed stage, where vials enter the conveyor and move into the infeed starwheel. This component keeps every vial evenly spaced and standing upright, ensuring smooth handling and consistent positioning throughout the line.



Next comes cap feeding, which is managed by a vibrating bowl feeder. The feeder automatically orients each cap and delivers it to the capping station, reducing manual effort and keeping production steady and efficient.



During the capping process, four capping heads lower simultaneously to pick up the caps and press them onto the vial necks. Each head applies the right amount of force to create a secure, tamper-resistant seal. This multi-head design improves speed, accuracy, and sealing consistency, which is essential for pharmaceutical and laboratory packaging.



Finally, in the vial discharge stage, the sealed vials move directly from the capper to the outfeed conveyor. From there, they continue to the next stage of production, such as labeling, inspection, or final packaging. This streamlined flow minimizes handling, protects product quality, and supports high-output manufacturing.

Working Principle of Four Head Ampoule Filling Machine

Technical Specification of Automatic Four Head Vial Capping Machine

ModelAI-VCSM 4
Vial DiameterUp to 45mm
Vial Heightup to 75mm
Cap Size13mm, 20mm, 32mm, or 38mm
Electrical supply415V AC 3-Phase and 220V AC Single Phase, 50 Hz with A.C. Drive
Power consumption2.0 H.P.
Conveyor HeightAdjustable between 800mm to 850mm
Dimensions (L x W x H)1500mm x 650mm x 1800mm (standard) / 2000mm x 900mm x 1800mm (bigger version)
Production OutputUp to 120 vials per minute (depending on vial and cap size)

Advantages of Automatic Four Head Vial Capping Machine

Key Features of Automatic Four Head Vial Capping Machine

  • No Vial – No Cap Mechanism Makes sure that the capping heads work only when a vial is placed, so no wastage and misoperation occurs.



  • No Cap – Machine Stop System The machine stops if a cap is not properly fed, boosting the reliability of the process.



  • Built with Stainless Steel For durability, corrosion resistance, and for fulfilling hygiene parameters.



  • Overload Clutch System The infeed and exit star wheels are outfitted with an overload clutch, which provides protection against vial breakage and facilitates smooth operation.



  • One Drive Synchronization A single motor drives the conveyor, starwheel, and turret in perfect synchronization, with speed regulated by a Variable frequency Drive (VFD).



  • Variable Speed Cap Feeder This equipment has the capability to feed in caps at exactly the same speed as production



  • Fast Changeover Whenever the vials and caps size is changed, the time and machine settings taken for the changeover are kept to a minimum.



  • Easy Clean The hopper is fully dismountable for easy cleaning and maintenance.



  • Safety Features Several safety mechanisms are in place, including a clutch system that helps to reduce the impact of vials in case of breakage on the operator.

FAQ for Automatic Four Head Vial Capping Machine

The machine can seal up to 120 vials per minute, depending on vial and cap size. Its four synchronized capping heads enable higher output compared to single-head systems.

It accommodates vials with a diameter of up to 45 mm and height of up to 75 mm. Compatible cap sizes include 13 mm, 20 mm, 32 mm, and 38 mm, with quick-change parts for fast size changeovers.

Vials enter via a conveyor and are spaced by an infeed starwheel. A vibrating bowl feeder orients and delivers caps. Four capping heads simultaneously apply and crimp the caps with controlled pressure for a secure, leak-proof seal. Sealed vials then move to the outfeed conveyor for the next process stage.

It includes “No Vial – No Cap” sensors to prevent wastage, a “No Cap – Machine Stop” system, overload clutches on star wheels to protect against breakage, adjustable crimping pressure to avoid glass cracking, PLC/HMI controls with recipe storage, and all product-contact parts made of SS 316 stainless steel for hygiene and corrosion resistance.

It delivers high-speed, consistent, leak-proof seals that protect product sterility, fully automated operation that reduces labor needs, minimal cap wastage, easy integration into filling/stoppering/labeling lines, quick changeovers, and robust GMP-compliant construction for long-term reliability in cleanroom and aseptic environments.

Yes — Adinath International Automatic Four Head Vial Capping Machine complies to cGMP, MHRA, FDA and WHO-GMP standards, with optional CE marked equipments and 21 CFR Part 11 software compliance for the HMI/PLC. Machine contact parts having Stainless Steel 316L grade materials with validation documents having IQ, OQ, DQ validation protocols as optional. Organization is ISO 9001:2015 certified.

Manufacturing lead time is generally 7 to 14 weeks from order confirmation. Further it takes 2 to 8 weeks for international shipping depending upon destination. Order can be expediate sooner or later as per specific buying requirements. Destination specific certifications like US FDA, EU, ANVISA, SFDA. CE can add 3 to 6 weeks additionally.

Yes, Adinath International Automatic Four Head Vial Capping Machine export this machine to more than 48 countries of this world including America, Europe, Asia, Middle East, Africa, CIS and Australia sub continents. Please visit our clientele page for complete list of our customers worldwide. See the turnkey project page for our complete plant offerings.

Service of skilled engineers and technicians provided for technical support of supplied equipments. Installations, commissioning, training and IQ, OQ, DQ validations performed by qualified engineers. Remote support through video call, phone, email and other modes provided for international installations. Spare parts of Automatic Four Head Vial Capping Machine stocked at our premises in Ahmedabad and shipped immediately after ordering. Standard 12 months manufacturing warranty included with supplied equipment.
