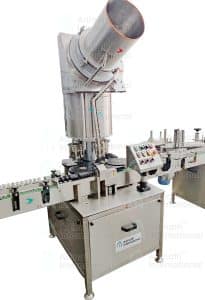

Automatic Four Head Bottle ROPP Capping Machine

Description

The Automatic Four Head Bottle ROPP Capping Machine is uses for high-speed sealing of bottles with Roll-On Pilfer Proof (ROPP) caps. This is a common bottle-filling machine uses in the pharmaceutical, food, pesticide, cosmetic, and chemical industries that has the capacity to fill up to 80 bottles per minute. Made of high-quality stainless steel for health and GMP compliance with durability and stability.

The Automatic Four Head Bottle ROPP Capping Machine is engineered with SS 316L contact parts and a robust stainless steel body, making it a dependable choice for pharmaceutical, food, beverage, and cosmetic packaging lines. Built in line with GMP and FDA standards, this ROPP capping machine delivers consistent, high-quality sealing while meeting strict hygiene and regulatory requirements.



Its seamless, crevice-free design minimizes the risk of contamination and makes cleaning and sterilization quick and effective. This makes the machine ideal for cleanroom integration and fully supports aseptic manufacturing protocols, helping manufacturers maintain product purity and safety at every stage of production.



The four-head configuration ensures faster output, accurate cap tightening, and uniform sealing across a wide range of bottle sizes. Automated operation reduces manual intervention, lowers labor costs, and improves overall production efficiency, while the corrosion-resistant construction ensures long service life even in demanding industrial environments.



Whether you are upgrading an existing packaging line or setting up a new facility, this automatic ROPP bottle capping machine offers reliable performance, easy maintenance, and excellent value. Choose a high-speed, compliant, and durable capping solution designed to protect product quality and enhance your production capacity.

Salient Features of Automatic Four Head Bottle ROPP Capping Machine

Working Principle of Automatic Four Head Bottle ROPP Capping Machine

Our automatic ROPP capping machine streamlines bottle sealing with a reliable, high-precision workflow built for modern production lines. The process begins at the infeed, where bottles are loaded automatically onto a moving conveyor, ensuring a smooth and continuous flow without manual handling. An infeed worm and star wheel then guide each bottle, spacing it accurately so every container reaches the capping station in perfect position.



Meanwhile, the integrated cap feeder delivers correctly oriented ROPP aluminum caps to the capping head, eliminating misalignment and reducing downtime. The machine features four capping heads that work simultaneously, dropping and rolling the aluminum caps onto the bottle necks with exceptional accuracy and speed.



During sealing, consistent torque is applied to create a firm, tamper-evident closure that protects product quality, prevents leakage, and builds consumer trust. Finally, sealed bottles move to the outfeed conveyor, ready for labeling, inspection, or packing.



Ideal for beverage, pharmaceutical, spirits, and bottling industries, this ROPP capping machine improves efficiency, reduces wastage, and delivers uniform, professional sealing results. Its durable construction and automated operation make it a dependable choice for manufacturers seeking higher output and consistent packaging quality.

Working Principle of Four Head Ampoule Filling Machine

Technical Specification of Automatic Four Head Bottle ROPP Capping Machine

Model AI-BRCM 4R
Bottle Diameter Up to 85mm (or custom-shaped bottles with proper base)
Bottle Height Up to 305mm
Cap Size Up to 28mm
Electrical Supply 415V AC, 3-Phase & 220V AC, Single Phase, 50 Hz with A.C. Drive
Power Consumption 1.5 H.P.
Conveyor Height Adjustable between 800mm and 900mm
Machine Dimensions (L x W x H) 1500mm x 1000mm x 2000mm approx.
Production Output Up to 80 bottles per minute (depending on bottle and cap size)

Advantages of Automatic Four Head Bottle ROPP Capping Machine

Key Features of Automatic Four Head Bottle ROPP Capping Machine

  • No Bottle – No Cap system to prevent misfeeds and wastage.



  • No Cap – Machine Stop system to ensure reliable operation.



  • Stainless steel (SS304/SS316) construction for hygiene and durability.



  • Overload clutch in starwheel to avoid bottle breakage.



  • Single drive synchronizes starwheel, turret, and conveyor with adjustable VFD.



  • Variable speed cap feeder for controlled feeding.



  • Quick changeover system reduces downtime.



  • Easy-to-clean, fully dismantlable hopper.



  • Safety mechanisms to protect both operator and product.

FAQ for Automatic Four Head Bottle ROPP Capping Machine

The machine can seal up to 80 bottles per minute, depending on bottle and cap size. Its four-head configuration enables higher output compared to single-head systems, making it suitable for high-volume production lines.

Bottles are automatically fed onto a conveyor and precisely spaced by an infeed worm and star wheel. An integrated cap feeder orients and delivers ROPP aluminum caps to the four capping heads, which simultaneously drop and roll the caps onto the bottle necks with controlled pressure and torque. This creates a firm, tamper-evident seal. Sealed bottles then move to the outfeed conveyor for further processing such as labeling or packing.

Key features include four-head simultaneous capping for higher output, fully automatic operation (feeding, capping, and discharge), automatic cap orientation and placement, PLC control with touchscreen HMI and recipe storage, “No Bottle – No Cap” and “No Cap – Machine Stop” safety systems, stainless steel (SS 304/SS 316) construction for hygiene and durability, overload clutch protection, quick changeover parts, variable-speed drive, and conveyor-based bottle handling.

It accommodates bottles up to 85 mm in diameter and 305 mm in height (including custom-shaped bottles with a proper base) and ROPP caps up to 28 mm. Quick-change parts and easy adjustments allow handling of a wide range of bottle and cap sizes with minimal downtime.

Advantages include high-speed output from the four heads, consistent tamper-evident and leak-proof sealing, fully automated operation that reduces labor costs and manual intervention, minimal cap wastage thanks to safety sensors, uniform quality across batches, longer product protection against air/moisture/contamination, easy integration into existing filling-labeling-packing lines, and durable, easy-to-clean stainless-steel construction suitable for cleanroom and aseptic environments.

Yes — Adinath International Automatic Four Head Bottle ROPP Capping Machine complies to cGMP, MHRA, FDA and WHO-GMP standards, with optional CE marked equipments and 21 CFR Part 11 software compliance for the HMI/PLC. Machine contact parts having Stainless Steel 316L grade materials with validation documents having IQ, OQ, DQ validation protocols as optional. Organization is ISO 9001:2015 certified.

Manufacturing lead time is generally 7 to 14 weeks from order confirmation. Further it takes 2 to 8 weeks for international shipping depending upon destination. Order can be expediate sooner or later as per specific buying requirements. Destination specific certifications like US FDA, EU, ANVISA, SFDA. CE can add 3 to 6 weeks additionally.

Yes, Adinath International Automatic Four Head Bottle ROPP Capping Machine export this machine to more than 48 countries of this world including America, Europe, Asia, Middle East, Africa, CIS and Australia sub continents. Please visit our clientele page for complete list of our customers worldwide. See the turnkey project page for our complete plant offerings.

Service of skilled engineers and technicians provided for technical support of supplied equipments. Installations, commissioning, training and IQ, OQ, DQ validations performed by qualified engineers. Remote support through video call, phone, email and other modes provided for international installations. Spare parts of Automatic Four Head Bottle ROPP Capping Machine stocked at our premises in Ahmedabad and shipped immediately after ordering. Standard 12 months manufacturing warranty included with supplied equipment.
