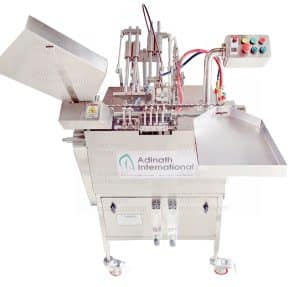

Automatic Ampoule Filling And Sealing Machine PLC Model

Description

The Automatic Ampoule Filling and Sealing Machine (PLC Model) is an ideal machine for filling and sealing glass ampoules in pharmaceutical, biotech, cosmetic, veterinary, and chemical companies. This machine comes with a PLC HMI control panel with automatic fill volume adjustments, providing ease of use & precision.

The Automatic Ampoule Filling and Sealing Machine PLC Model is built for pharmaceutical manufacturers who need reliable, high-precision performance. Its robust SS 304 stainless steel frame and SS 316L contact parts ensure long-lasting durability and effortless wash-down cleaning. Safety is a priority, with flame guards and gas meters protecting operators during every cycle.



A smart PLC control system manages piston, servo, or peristaltic pumps, maintaining dosing accuracy within ±1%. Operators can adjust fill volumes directly on the touchscreen during operation, making the machine ideal for trial batches and continuous 24/7 production.



To preserve product quality, nitrogen gas purging occurs before, during, and after filling, preventing oxidation. A pre-heat station dries the glass ampoules, allowing the LPG-oxygen burner to create clean, consistent seals. With a high output of up to 200 ampoules per minute, this machine delivers speed without compromising precision. The “No Ampoule–No Fill” sensor prevents spillage and product waste, ensuring low rejection rates, greater efficiency, and dependable performance for modern pharmaceutical production lines.

Salient Features of Automatic Ampoule Filling And Sealing Machine PLC Model

Working Principle of Automatic Ampoule Filling And Sealing Machine PLC Model

The slant hopper of an automatic ampoule filling and sealing machine is loaded with sterilized ampoules, ensuring a clean and contamination-free start to the pharmaceutical packaging process. A synchronized star wheel then releases each ampoule, one at a time, onto a moving eccentric rack, which guarantees precise positioning and smooth, consistent handling throughout the operation.



While the rack is non-operational, the machine performs a complete sequence of critical steps: pre-gassing, accurate liquid filling, post-gassing, pre-heating, and final sealing. Inert gas flushing protects sensitive injectable formulations from oxidation, while the controlled heating and sealing process creates a tight, leak-proof closure that preserves product quality, potency, and sterility.



Once filling and sealing are finished, the ampoules are automatically collected onto a collection tray. This fully automated discharge removes the need for any human or manual intervention, which lowers the risk of contamination, reduces product damage, and improves overall hygiene. For pharmaceutical manufacturers, this high-speed, GMP-compliant ampoule filling and sealing solution delivers consistent dosing accuracy, higher productivity, reduced labor costs, and dependable batch-to-batch quality for injectables, vaccines, and other liquid parenteral products.

Working Principle of Four Head Ampoule Filling Machine

Technical Specification of Automatic Ampoule Filling And Sealing Machine PLC Model

ModelAF1SAF2SAF4SAF6SAF8S
Filling HeadsSingleTwoFourSixEight
Ampoule Range1 ml to 20 ml1 ml to 20 ml1ml to 10ml1ml to 10ml1ml to 10ml
Production OutputUp to 25 ampoules per minuteUp to 50 ampoules per minuteUp to 100 ampoules per minuteUp to 150 ampoules per minuteUp to 200 ampoules per minute
Power Requirement0.5 H.P.1.0 H.P.1.0 H.P.1.0 H.P.2.0 H.P.

Advantages of Automatic Ampoule Filling And Sealing Machine PLC Model

Key Features of Automatic Ampoule Filling And Sealing Machine PLC Model

  • Small Scale GMP

Follows Good Manufacturing Practice guidelines to deliver optimal quality and safety in a compact package.



  • Volume Adjustments Auto Fill

Adjustable fill volumes from the control panel in just a few easy steps.



  • Multi-Sized Ampoule Compatibility

Suitable for different sizes of ampoule from 1ml to 20ml, catering for diverse production requirements.



  • Rapid Production Capacity

The machine can fill and seal up to 200 ampoules per minute, depending on the model, which helps increase operational efficiency.



  • Ampoule absence detection

Filling only occurs with the presence of an ampoule. This helps reduce wastage and spillage.



  • Nitrogen Flushing Capability

Provides nitrogen gas flushing capabilities before, during, and after filling, which helps with product preservation.



  • Pre-Warming Station

A pre-warming station to heat ampoules before the sealing process for a tight seal.



  • Short Changeover Time

Fast and simple changeovers based on ampoule size and fill volume, allowing minimal downtime.



The Automatic Ampoule Filling and Sealing Machine is designed to meet the highest standards of performance and reliability in the pharmaceutical industry.

FAQ for Automatic Ampoule Filling And Sealing Machine PLC Model

The range includes five models:

  • AF1S (single head): up to 25 ampoules/min
  • AF2S (two heads): up to 50 ampoules/min
  • AF4S (four heads): up to 100 ampoules/min
  • AF6S (six heads): up to 150 ampoules/min
  • AF8S (eight heads): up to 200 ampoules/min
    Ampoule size range is typically 1–20 ml (or 1–10 ml on higher-head models).

The PLC with touchscreen HMI allows operators to set and adjust fill volume, speed, and sealing parameters on the fly, store recipes for batch consistency, and achieve dosing accuracy within ±1%. It supports piston, servo, or peristaltic pumps and enables both trial batches and continuous 24/7 production.

Key features include the “No Ampoule–No Fill” sensor to prevent spillage and waste, nitrogen gas purging (before, during, and after filling) to protect oxygen-sensitive products, flame guards and gas meters for operator safety, a pre-heat station for clean sealing, and full SS 304 frame with SS 316L contact parts for hygiene and easy wash-down.

It accommodates ampoules from 1 ml to 20 ml (model-dependent) using interchangeable change parts. Quick changeover design minimizes downtime when switching sizes or fill volumes, while the star-wheel/eccentric-rack feeding system ensures gentle, breakage-resistant handling.

Sterilized ampoules are loaded into a slant hopper and released one-by-one via a synchronized star wheel onto an eccentric rack. While the rack is stationary, the machine performs pre-gassing, precise liquid filling, post-gassing, pre-heating, and gas-flame sealing. Filled and sealed ampoules are then automatically discharged to a collection tray with no manual intervention, maintaining sterility and reducing contamination risk.

Yes — Adinath International Automatic Ampoule Filling And Sealing Machine PLC Model complies to cGMP, MHRA, FDA and WHO-GMP standards, with optional CE marked equipments and 21 CFR Part 11 software compliance for the HMI/PLC. Machine contact parts having Stainless Steel 316L grade materials with validation documents having IQ, OQ, DQ validation protocols as optional. Organization is ISO 9001:2015 certified.

Manufacturing lead time is generally 7 to 14 weeks from order confirmation. Further it takes 2 to 8 weeks for international shipping depending upon destination. Order can be expediate sooner or later as per specific buying requirements. Destination specific certifications like US FDA, EU, ANVISA, SFDA. CE can add 3 to 6 weeks additionally.

Yes, Adinath International Automatic Ampoule Filling And Sealing Machine PLC Model export this machine to more than 48 countries of this world including America, Europe, Asia, Middle East, Africa, CIS and Australia sub continents. Please visit our clientele page for complete list of our customers worldwide. See the turnkey project page for our complete plant offerings.

Service of skilled engineers and technicians provided for technical support of supplied equipments. Installations, commissioning, training and IQ, OQ, DQ validations performed by qualified engineers. Remote support through video call, phone, email and other modes provided for international installations. Spare parts of Automatic Ampoule Filling And Sealing Machine PLC Model stocked at our premises in Ahmedabad and shipped immediately after ordering. Standard 12 months manufacturing warranty included with supplied equipment.
