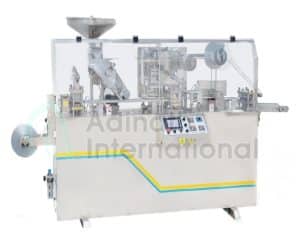

The High Speed Blister Packing Machine is ideal for packing pharmaceutical and nutraceutical products like tablets, capsules, and softgels into blister packs with high speed. These machines are famous for enhancing the efficacy of production processes, protecting the quality of products, and adhering to strict industry standards.
Designed for Longevity and Continued Compliance
The High Speed Blister Packing Machine is engineered from premium-grade materials and built with a compact, robust design that delivers dependable performance in demanding pharmaceutical environments. Developed in strict compliance with current Good Manufacturing Practices (cGMP), this blister packaging machine ensures hygienic operation, product safety, and consistent quality in every production cycle.
Its small footprint and space-saving structure make it ideal for facilities that need to maximize floor space without compromising output. Whether you operate a large-scale manufacturing unit or a compact production line, this machine integrates smoothly into nearly any setup. Manufacturers searching for an efficient, cGMP-compliant blister packing solution will find this machine a reliable choice for improving productivity, reducing operational costs, and meeting modern pharmaceutical packaging standards with confidence.
The blister packing machine process begins with film forming, where a roll of base film feeds into the forming station. Mechanical or heated tooling shapes precise cavities that hold each tablet or capsule securely, ensuring consistent pack quality from the start.
Next comes product feeding. A product transfer roller drops tablets or capsules into each formed cavity at a set pitch, delivering accurate, repeatable filling for pharmaceutical and nutraceutical blister packaging.
Once the cavities are filled, the lidding film is applied. Operators load aluminium or heat-seal foil onto the top roll, and the machine lays it over the filled cavities and aligns it perfectly for sealing.
The sealing stage follows, using platen or rotary seal bars to fuse the lidding film to the base film. Heat-sealed lacquer creates a hermetic, tamper-evident pack that protects products from moisture, light, and contamination, extending shelf life.
Finally, cutting and discharge complete the cycle. The machine cuts blister strips to size and moves them onto the outfeed conveyor, ready for cartoning and packing without pauses. This continuous, automated workflow improves efficiency, reduces waste, and supports high-speed production in modern pharmaceutical packaging lines.
| Model | AI-BPM 40+ | |
| Description | Cold Form ALU- ALU | Thermo Forming (When Fitted) |
| Base Film Width. | Alu. Foil 225 mm | PVC Film 225 mm |
| Blister Foil Thickness | Alu. 0.13 – 0.15 mm | PVC 0.20 – 0.40 mm |
| Reel Diameter | Alu. 440 mm | Pvc 440 mm |
| Sealing Foil Thickness | 0.02 – 0.04 mm | 0.02 – 0.04 mm |
| Overall Dimension | 2900 (L) x 1180 (W) x 1915 (H) mm ±2% | |
| Net Weight Approx. | 1950 Kilograms | |
Unique features of the High Speed Blister Packing Machine are designed to make the operator’s life easier:
Easy to Use Controls: Touchscreen interfaces and PLCs for easy control and monitoring.
Rapid Format Changes: Tool-less Changeover systems make rapid transition between different product formats possible, minimizing downtime.
Design to be Clean: Cleanability supports environmental performance. Its components are designed to be easy to clean for long-term usage.
High-Speed Running: High-speed machines can process up to 300 blister packs a minute, and can be configured for as many as 900 blisters on a three-lane system.
Compact Design: High-speed motors make it easier to work smaller designs into areas with large enclosed facilities.
Customization and Versatility
The High Speed Blister Packing Machine is versatile in meeting diverse packaging needs:
Material Compatibility: Able to process a range of packaging materials including thermoform and cold-form films.
Feeding System: Different filling machines have different types of feeding systems.
Automation in blister packing ensures that each box is uniform, thus reducing human error and maintaining consistency of products. This type of accuracy is vital for the pharmaceutical business, which relies on exact dosages and the integrity of packaging to keep patients safe. Implementing a high speed blister packing machine on your production line increases efficiency, guarantees product consistency, and adheres to industry standards, making it an essential element in contemporary manufacturing operations.
The machine can produce up to 300 blisters per minute. On a three-lane configuration, it can be set up to handle as many as 900 blisters per minute, supporting high-volume pharmaceutical and nutraceutical production.
The machine features stainless steel construction, typically SS 304 or SS 316L for the body and all product-contact parts. This ensures durability, hygiene, easy cleaning, and compliance with cGMP standards in pharmaceutical environments.
Yes. The AI-BPM 40+ model supports Cold Form ALU-ALU (using aluminium foil 0.13–0.15 mm) as well as Thermo Forming (when fitted, using PVC film 0.20–0.40 mm). Base film width is 225 mm and reel diameter is 440 mm for both options.
It uses automatic feeding systems (brush or vibratory feeders) for precise filling of every cavity, even at high speeds. Sensors perform empty pocket detection to identify missing or half-filled pockets and automatically reject faulty blisters, maintaining pack quality and reducing waste.
It is equipped with a PLC control system and a touchscreen HMI for easy setting of speed and parameters, plus recipe storage. Servo-driven systems provide smooth, precise, and synchronized movement. Quick-changeover tools (interchangeable forming and sealing tools) and tool-less changeover options minimize downtime during format switches.
The overall dimensions are approximately 2900 mm (L) × 1180 mm (W) × 1915 mm (H) (±2%). The net weight is about 1950 kg. Its compact, space-saving design allows easy integration into both large-scale and more compact production lines.
Yes — Adinath International High Speed Blister Packing Machine complies to cGMP, MHRA, FDA and WHO-GMP standards, with optional CE marked equipments and 21 CFR Part 11 software compliance for the HMI/PLC. Machine contact parts having Stainless Steel 316L grade materials with validation documents having IQ, OQ, DQ validation protocols as optional. Organization is ISO 9001:2015 certified.
Manufacturing lead time is generally 7 to 14 weeks from order confirmation. Further it takes 2 to 8 weeks for international shipping depending upon destination. Order can be expediate sooner or later as per specific buying requirements. Destination specific certifications like US FDA, EU, ANVISA, SFDA. CE can add 3 to 6 weeks additionally.
Yes, Adinath International High Speed Blister Packing Machine export this machine to more than 48 countries of this world including America, Europe, Asia, Middle East, Africa, CIS and Australia sub continents. Please visit our clientele page for complete list of our customers worldwide. See the turnkey project page for our complete plant offerings.
Service of skilled engineers and technicians provided for technical support of supplied equipments. Installations, commissioning, training and IQ, OQ, DQ validations performed by qualified engineers. Remote support through video call, phone, email and other modes provided for international installations. Spare parts of High Speed Blister Packing Machine stocked at our premises in Ahmedabad and shipped immediately after ordering. Standard 12 months manufacturing warranty included with supplied equipment.
