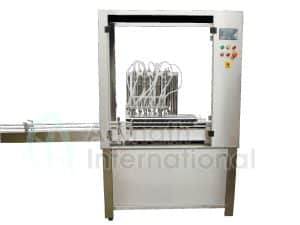

The Automatic Six Head Volumetric Liquid Filling Machine is an accurately designed machine developed for high production capacity industries like pharmaceuticals, food & beverage, cosmetics, and chemicals. Designed for many applications involving free-flowing liquids, this machine delivers speed and precision to the production floor with six synchronized filling heads.
Liquid Filling MachineVideo
Robust and Hygienic Construction
The Automatic Six Head Volumetric Liquid Filling Machine is a robustly designed machine with the frame built on SS 304 and contact parts of the machine made of high-grade SS 316 suited for food-grade, clean, and sterile environments. The modular design enables easy cleaning, maintenance, and rapid adaptation to different production demands.
How It Works?
- Container Infeed
A stainless steel slat conveyor automatically feeds bottles or containers. Before reaching the filling station, a pneumatically controlled twin stopper system ensures they are properly spaced apart.
- Liquid Filling Operation
The six-head volumetric piston-type system provides accurate and repeatable filling. The stainless steel syringes are all fully adjustable, allowing for a wide range of fill volumes.
- Foam-Free Filling
The filling system uses the nozzle during fill, preventing foaming and splashing in the container, ideal for foamy or any non viscous liquid.
- Exit & Transfer
Containers move efficiently along the conveyor line to the next step in the package (capping, labeling, inspection) after the fill cycle.
Key Features of Liquid Filling Machine
- No Bottle – No Fill System
Stops the filling process if no container is not available to prevent waste & spillages.
- All Contact Parts In SS316
Promotes hygiene in operation and is resistant to corrosion and chemicals.
- SS304 Frame Construction
Provides good strength and stability.
- Drip Free Nozzle Mechanism
Zero-drip, foam-free filling means a clean and efficient working process.
- Syringe Adjustment
Allows for rapid product changeover to fill different volumes with minimal downtime.
- Minimal Changeover Time
It permits quick adjustments to accommodate various bottle sizes and designs without requiring a complicated calibration process.
- Adjustable Conveyor Height
Integrates with downstream equipment for a seamless flow of the production line.
- Variable Speed Drive
Allows for variable speed to adapt to the different requirements of each operation.
Technical Specification of Liquid Filling Machine
|
Model |
AI-BFM 6 |
| Number of Filling Heads |
Six |
|
Rate of Production |
Up to 120 bottles/minute (depending on product & container size) |
| Filling Range |
30-500 ml |
|
Filling Accuracy |
±1% |
| Bottle Diameter Range |
30-100mm |
|
Power Supply |
440 V, 3 Phase, 50Hz, 4-wire system |
| Consumption of Power |
2 H.P. |
|
Conveyor Height |
800mm to 850mm (adjustable) |
| Machine Dimensions (L x W x H) |
1800mm x 1000mm x 1900mm |
|
Range of Syringe Filling |
10-50ml, 50-100ml, 100-250ml, and 250-500ml |
* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.
*Specifications can be customized based on user requirements.
The Automatic Six Head Volumetric Liquid Filling Machine is a great option for a mid-to-high capacity filling solution. This high-speed filling machine helps ensure that production is optimized, downtime is minimized, and there are no fluctuations in product quality with all the batches, as it offers high throughput, accuracy in filling, and durable construction.
