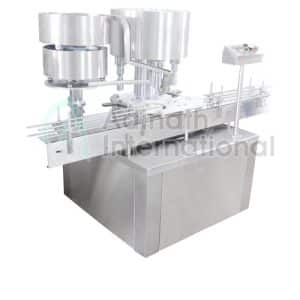

The Automatic Six Head Bottle Screw Capping Machine is a fully automated machine suitable for very high-speed, accurate, and dependable sealing of bottles using plastic screw caps. Designed for high-speed capping, this machine has the capacity to process up to 120 bottles per minute and can be used in industries like pharmaceuticals, food, pesticides, cosmetics, and many others where capping is a primary part of the process.
Bottle Screw Capping Machine Video
Built For Strength and Durability
Fabricated from SS 316L contact parts, the Automatic Six Head Bottle Screw Capping Machine is made of stainless steel construction, built following GMP and FDA standards. The seamless design provides a reduced contamination risk and is compatible with cleanroom integration and easy sterilization, allowing compliance with aseptic manufacturing protocols.
How It Works?
-
Bottle Infeed: Bottles are fed onto the conveyor and directed into the infeed starwheel, positioning them with the correct spacing and orientation.
-
Cap Feeding: Caps are directed to the capping station in an oriented manner, using an orientation-type cap feeder or vibratory bowl feeder, depending upon the shape and size of the cap.
-
Capping Method: Simultaneous descent of 6 capping heads, each engaging with a cap and screwing onto the bottle with the appropriate torque.
-
Bottle Exit: Fully closed bottles are transported from the capping station to the outfeed conveyor for further processing or packaging.
Key Features of Bottle Screw Capping Machine
-
No Bottle – No Cap system This makes sure the capping heads are only working when a bottle is available, with no wastage and misoperation.
-
No Cap – Machine Stop System Ensures the Machine will stop working if there are no Caps fed properly, thus ensuring process reliability.
-
Stainless Steel Body: Ensures durability, rust resistance, and hygiene.
-
Overload clutch system: Infeed and exit starwheels are fitted with overload clutches to ensure breakage-free Operation.
-
One Drive Sync: An individual drive uses one motor to synchronize the conveyor, starwheel, and turret, and is speed adjustable using a Variable Frequency Drive (VFD)—keeping the motion performance identical.
-
Cap Feeder with Variable Speed: To regulate the cap feeding rates in conjunction with the production speeds.
-
Fast Tool-less Changeover: Optimized for low changeover and setup time for different bottle and cap sizes.
-
Easy Maintenance: Cleaning and maintenance by complete disassembly of the hopper under cleaning and maintenance.
-
Safety Mechanisms: Features an array of safety systems, including a clutch system, to avoid bottle breakage and keep operators safe.
Technical Specification of Bottle Screw Capping Machine
| Model | AI-BSCM 6 |
| Bottle Diameter | Up to 85mm or other shaped bottles with proper base support. |
| Bottle Height | Up to 300mm. |
| Cap Size | Up to 32mm. |
| Electrical Requirements | 415V AC 3-Phase and 220V AC Single Phase, 50 Hz, with A.C. Drive. |
| Power Consumption | 3.0 H.P. |
| Conveyor Height | Can be adjusted from 850mm to 900mm |
| Dimensions (Length, Width & Height) | 1500mm x 1000mm x 2000mm approx. |
| Throughput | Up to 120 bottles/min (Depends on the bottle and cap size) |
* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.
*Specifications can be tailored to individual customer needs.
Update your packaging process with the automatic six-head bottle screw capping machine, a solution intended for heavy bottle capping needs with continuous production.
