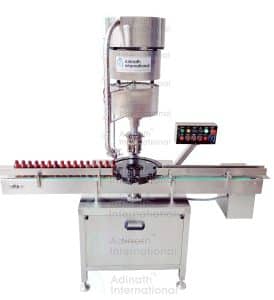

The Automatic Single Head Bottle ROPP Capping Machine is designed for precise and effective sealing of round bottles with Roll-On Pilfer Proof (ROPP) caps. Designed for small to middle-size production processes in the pharmaceutical, beverage, food, chemical, and liquor industries, it caters up to 40 bottles/minute. Made from durable stainless steel material, this equipment is compliant with GMP standards, which means you can trust that it will last.
Whether you’re scaling up or optimizing existing production, this machine offers dependable performance, operational flexibility, and long-term durability, making it an excellent addition to any modern bottling setup.
Bottle ROPP Capping Machine Video
Robust and Sterile Construction
The Automatic Single Head Bottle ROPP Capping Machine is enclosed with SS316 contact parts & designed as per the GMP/FDA compliant standards. This continuous flow design also has less risk of contamination, more compatibility with cleanroom integration, and easy sterilization to reinforce meeting aseptic manufacturing needs.
How It Works?
-
Bottle Infeed:
Bottles are fed onto the conveyor, spaced using an infeed worm, and guided into the infeed starwheel.
-
Cap Placement:
ROPP caps are oriented and fed to the capping head through a cap feeder system.
-
Capping Process:
The capping head descends and uses spinning rollers to press and form the aluminum ROPP cap tightly around the bottle neck, ensuring a tamper-evident seal.
-
Bottle Discharge:
Sealed bottles exit through the starwheel and continue down the conveyor for the next stage of packaging.
Key Features of Bottle ROPP Capping Machine
-
No Bottle – No Capping System prevents waste and misoperation.
-
No Bottle – Machine Stop ensures safety and process reliability.
-
Stainless steel construction for hygiene and durability.
-
The variable speed cap feeder allows control over cap feed rates.
-
Easily dismantlable hopper for fast and effective cleaning.
-
Safety clutch mechanism prevents damage from jams or bottle breakage.
-
Single-drive synchronization ensures smooth coordination of machine parts.
-
Quick changeover for different bottle and cap sizes, reducing downtime.
Technical Specification of Bottle ROPP Capping Machine
|
Model |
AI-BRCM 1R |
| Bottle Diameter |
Up to 85mm |
|
Bottle Height |
Up to 150mm |
| Aluminium ROPP Cap Size |
20mm, 25mm, 28mm, 32mm (with appropriate change parts) |
|
Electrical Requirements |
415V AC 3-Phase & 220V AC Single Phase, 50 Hz, with A.C. Drive
|
| Power Consumption |
1 H.P. |
|
Conveyor Height |
Adjustable between 815mm to 850mm |
| Rack Dimensions (L x W x H) |
1500mm x735mm x1800mm approx. |
|
Production Rate |
Up to 40 bottles per minute (depending on bottle and size) |
Note: These specifications can be customized.
* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.
The Automatic Single Head Bottle ROPP Capping Machine is an efficient and versatile solution for accurately sealing aluminum ROPP caps on bottles. This machine, which is characterized by its compact design, user-friendly features, and reliability, is a great fit for any production line requiring high-integrity, tamper-evident closure.
