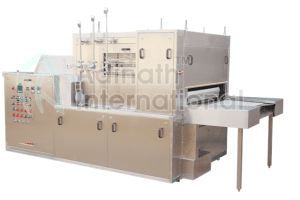

The Automatic Linear Vial Washing Machine is widely used in the pharmaceutical industry to wash glass vials appropriately, ensuring they are hygienic enough for production. This is an ideal machine for integration in high-speed vial filling lines for smooth and consistent operational performance.
Linear Vial Washing Machine Video
Sterile Construction for Critical Environments
Fabricated from SS 316L contact parts, the Automatic Linear Vial Washing Machine is made of stainless steel construction, built following GMP and FDA standards. The seamless design provides a reduced contamination risk and is compatible with cleanroom integration and easy sterilization, allowing compliance with aseptic manufacturing protocols.
How It Works?
Feeding & Indexing:
Vials are loaded onto the conveyor and accurately indexed into single pockets. The layout guarantees that every vial is aligned for washing in an ideal manner.
Three-Cycle Washing:
The system implements three inner rinsing cycles and two outer rinsing cycles, using high-pressure jets trained specifically on the center of each vial. This multiple-stage procedure thoroughly cleans residue, targets particulates, and even removes contaminating agents.
Drainage & Discharge:
At the end of the rinsing cycles, the vials are effectively drained (only traces of water remain) by optimized nozzles and drainage design. The bottles come out almost dry and prepared for the next process.
Zone Separation:
It is designed as a tunnel, with the feeding area for the vials in another sector than the discharge sector, which ensures sterility and minimizes any chances of cross-contamination.
Mechanical Isolation:
All the mechanical drives are mounted outside the washing chamber to provide extra hygiene and GMP compliance.
Technical Specification of Linear Vial Washing Machine
|
Model |
VW-120 | AVW-250 |
| Production Rate | Up to 120 vials per minute |
Up to 250 vials per minute |
|
Vial Size Compatibility |
2ml to 250ml | 2ml to 250ml |
| Machine Direction | Left to Right |
Left to Right |
|
Conveyor Height |
Adjustable between 850mm to 900mm | Adjustable between 850mm to 900mm |
| Power Supply (Main Machine) | 1 H.P. |
1.5 H.P. |
|
Power Supply (Pumps) |
2 H.P. | 2 H.P. |
| Power Supply (Conveyor) | 0.5 H.P |
0.5 H.P. |
|
Electrical Requirements |
440 Volts, 3 Phase, 50 Hertz | 440 Volts, 3 Phase, 50 Hertz |
| Air Requirement | 20 CFM |
20 CFM |
|
Water Requirement |
400 Liters per hour |
600 Liters per hour |
* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.
*Specifications are subject to change based on customer requirements and technical advancements.
The Automatic Linear Vial Washing Machine is a popular and dependable, as well as an efficient vial washing system for those working in the pharmaceutical industry and who are looking to improve the quality of their vial washing and cleaning. With its durable build quality and high-end features, this cleaning machine can serve as a great extension for any production line, ensuring wonderfully clean vials that are prepared for the next processing step.
