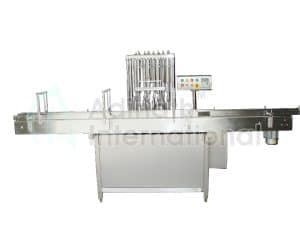

The Automatic Eight Head Volumetric Liquid Filling Machine is Ideal for mass production. It is a high output volumetric liquid filling machine with accuracy at its core and suits large industries in pharma, cosmetics, food & beverage, chemicals, etc. Designed to be fast and precise, it ensures liquid products that flow freely and are non-viscous are dispensed with consistent precision, which is perfect for production environments where speed and accuracy are a must.
Volumetric Liquid Filling Machine Video
Robust and Hygienic Construction
The Automatic Eight Head Volumetric Liquid Filling Machine is made with a heavy-duty SS 304 frame, and contact parts are made of SS 316 to ensure long-lasting durability, superior hygiene, and easy sterilization. Thanks to its modular and compact design, it supports fast clean-up, quick maintenance, and seamless fit into your cleanroom environments.
How It Works?
- Container Infeed:
Containers are fed through a stainless steel slat conveyor. A pneumatically operated twin stopper system precisely spaces each bottle before filling begins.
- Liquid Filling Operation:
The machine uses an eight-head piston-type volumetric filling system. Each stainless steel syringe operates independently, allowing fine-tuned adjustments for variable fill volumes across a wide range of container sizes.
- Foam-Free Filling:
A diving nozzle mechanism enters the containers during filling to prevent foam generation or liquid splashing—particularly beneficial for foamy or sensitive products.
- Exit & Transfer:
Once filled, bottles continue along the conveyor to subsequent packaging stations, such as capping or labeling units.
Key Features of Liquid Filling Machine
- No Bottle – No Fill System
If no container is detected, the machine automatically stops. This prevents waste and spillage.
- SS316 Contact Parts
It offers hygienic performance, is resistant to chemicals and corrosion, and allows easy sterilization.
- Durable SS304 Frame
Improves the stability of the machine and the longevity of its operation.
- Special Nozzle Technology
Provides a clean, foam-free filling with minimal drip or mess.
- Tool-Free Syringe Adjustment
Needs minimal tools to swap out, which makes it great for production lines that process many different fillings.
- Capillary Shut-Off Drip Nozzles – No Dripping At All
Ensures no leakage, fills accurately , and stays clean, too.
- Quick Changeover Design
Allows for reduced downtime between changeovers for different bottle sizes or fill volumes.
- Adjustable Conveyor Height
Compatible to be hooked in with downstream automation systems for an easy workflow.
- Variable Speed Drive
Provides a smooth and efficient adjustment of the speed concerning the required production.
Technical Specification of Liquid Filling Machine
|
Model |
AI-VLFM 8 |
| Number of Filling Heads |
Eight |
|
Rate of Production |
Up to 150 bottles/minute (product & container dependent) |
| Filling Range |
30-500ml |
|
Filling Accuracy |
±1% |
| Bottle Diameter Range |
30-100mm |
|
Bottle Height Range |
50-250mm |
| Power Supply |
220 VAC, Single Phase, 50Hz |
|
Consumption of Power |
2 H.P. |
| Range of Syringe Filling |
10-50ml, 50-100ml, 100-250ml, and 250-500ml |
|
Conveyor Height |
800-850mm (adjustable) |
| Machine Dimensions (L x W x H) |
3000mm x 900mm x 1550mm |
* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.
*Specifications can be customized to match client-specific requirements.
If your enterprise is running high-speed production but does not want to compromise with precision, then the Automatic Eight Head Volumetric Liquid Filling Machine is the machine for you. With its advanced features, hygienic build, and easy-to-use design, it promises smooth functioning and quality products in outputs. It is capable of strengthening the arsenal of any modern liquid packaging assembly.
